50L Plastic Extrusion Blow Moulding Machine MP110FD

Brand Name : MEPER

Model Number : MP110FD

Certification : CE/ISO9001:2008

Place of Origin : China

MOQ : 1 set

Price : negotiable

Payment Terms : L/C, T/T

Supply Ability : 100 sets per month

Delivery Time : 25-35 work days

Packaging Details : standard packaging

Plate stroke : 750mm

Platen opening strokes : 450-1050MM

Applicable materials : PE PP

Mould clamping force : 300KN

Machine weight : 28ton

Max product volume : 50L

Number of heads : 1 SET

Machine dimension (LxWxH) : 6X7X4M

Contact Now

Product Description:

An MP Plastic Blow Molding Machine refers to a type of blow molding equipment used in the plastic manufacturing industry to produce hollow plastic parts, such as bottles, containers, and other packaging products. The "MP" designation could stand for Multi-Purpose, Multi-Parison, or be part of a specific model series from a manufacturer.

Features:

a) The extruding device utilizes a variable frequency motor to accommodate the changing rotation requirements of the screw during the blowing process. It can make use of a screw with a high slenderness ratio to process various materials efficiently, boasting strong plasticizing ability, high production capacity, and low energy consumption. The barrel is equipped with a resistance heater controlled by a computer for quick, stable, and uniform heating.

b) The combined extrusion system between two extrusion machines allows for the installation of different heads to produce blown products with a visible strip line or double layers.

c) The mould clamping device adopts a toggle-type mechanism and linear guider. With a double station design, the mould platen moves quickly and steadily for enhanced efficiency.

Technical Parameters:
System Item Unit Basic Parameter

Basic specifications

Applicable materials PE PP
Max product volume L 50
Number of heads SET 1

Machine dimension

(LxWxH)

M 6X7X4
Machine weight TON 28

Mould clamping system

Mould clamping force KN 300
Platen opening strokes MM 450-1050
Plate stroke MM 750
Max mould sizes(WxH) MM 720x750

Extrusion system

Screw diameter MM 110 25
Screw slenderness ratio L/D 26 22
Plasticizing ability (HDPE) KG/H 218 3
Screw heating stage/zone Zone 5 2
Screw heating power KW 21 1.4
Screw fan power KW 0.56
Extrusion motor power KW 94.2 1.5

Head

Head heating stage/zone Zone 7
Head heating power KW 25

Energy consumption

Total machine power KW 200
Oil motor power KW 37
Air pressure MPA 0.6-1
Compression air volume M3/min 3
Cooling water volume L/min 1000

Applications:

Extrusion molding machines are widely used in manufacturing to produce continuous profiles with a fixed cross-section. Here are some key applications across various industries:

  1. Plastic Industry
  2. Construction & Building Materials

Advantages of Extrusion Molding

FAQ:

Q: What is the brand name of this Extrusion Molding Machine?

A: The brand name of this Extrusion Molding Machine is MEPER.

Q: What is the model number of this machine?

A: The model number of this machine is MP110FD.

Q: Where is this Extrusion Molding Machine manufactured?

A: This machine is manufactured in China.

Q: What certifications does this machine have?

A: This machine is certified with CE/ISO9001:2008.

Q: What is the minimum order quantity for this Extrusion Molding Machine?

A: The minimum order quantity for this machine is 1 set.


Product Tags:

50L Plastic extrusion moulding machine



Plastic Extrusion Blow Moulding Machine



50L Extrusion Blow Moulding Machine


Wholesale 50L Plastic Extrusion Blow Moulding Machine MP110FD from china suppliers

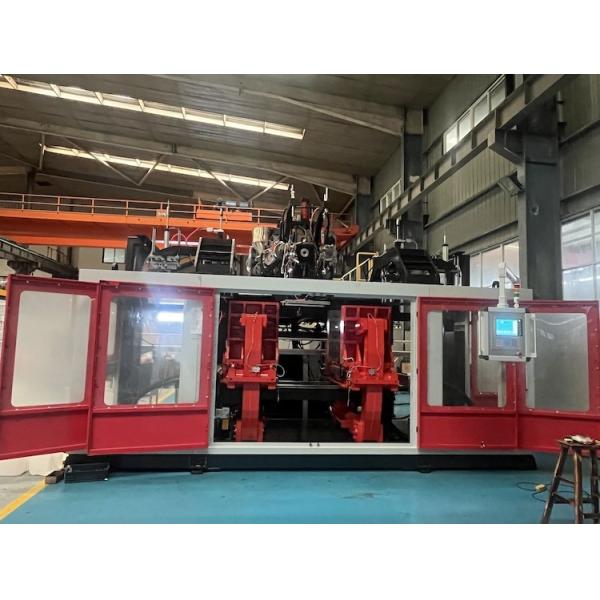

50L Plastic Extrusion Blow Moulding Machine MP110FD Images
